Plate and Frame Heat Exchangers
-
Applications:
- Central HVAC and ancillary cooling, District energy systems, Semiconductor and battery, manufacturing plants, Data center cooling, Water isolation exchangers (geothermal, waste heat recovery, solar), Process cooling, Domestic water systems, Pool and spa heating, Food industry applications
-
Description:

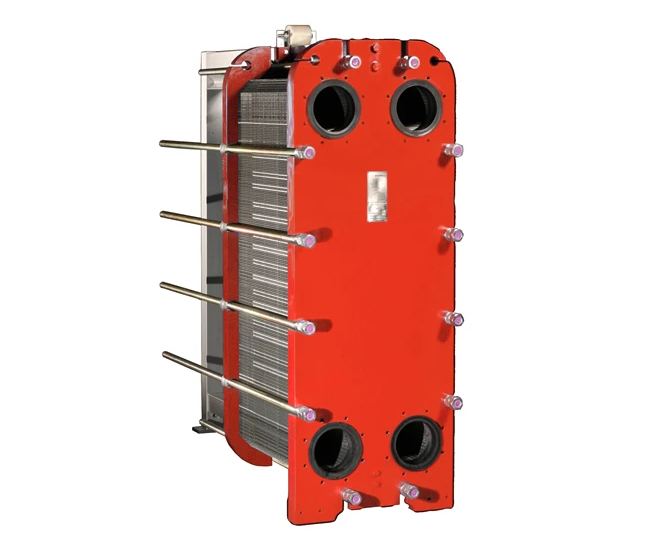

- Armstrong PFX heat exchangers feature specially corrugated metal plates bolted between two pressure plates for efficient heat transfer
- Optimized for both liquid-to-liquid and steam-to-liquid heat transfer
- Compliant with ASME Code, AHRI 400, CSA B51, and NSF61
-
Materials:
- Frames/Pressure Plates: Stainless steel, painted carbon steel
- Bolts: Stainless steel, zinc-coated carbon steel
- Support Column (optional): Stainless steel, painted carbon steel, aluminum
- Plates: Stainless steel 304, stainless steel 316L (single and double wall), titanium (single and double wall)
- Gaskets: Elastomer materials, sigma coat, compressed fibers (non-asbestos), EPDM (Steam/FDA available), NBR (FDA available), Viton
